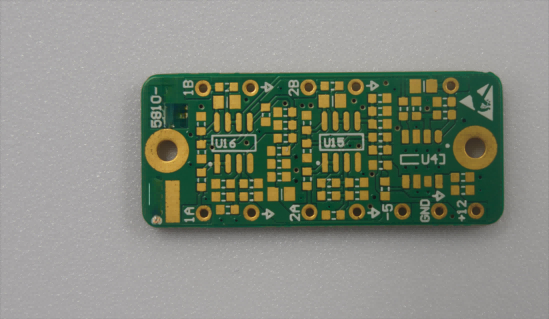

Heavy Copper PCB with 0.2mm Minimum Hole Size with EING

Product Description:

The Heavy Copper based PCB is a specialized type of Printed Circuit Board that is designed to handle high current and power applications. With thicker copper circuitry compared to standard PCBs, the Heavy Copper PCB offers enhanced durability and heat dissipation capabilities.

Tested to meet IPC Class 2 standards, this Heavy Copper Printed Circuit Board ensures reliable performance in various industrial and commercial applications. The board thickness ranges from 1.0mm to 3.2mm, providing flexibility in design and application requirements.

Constructed with high-quality Epoxy Resin insulation materials, the Heavy Copper PCB offers excellent electrical insulation properties and mechanical strength. This ensures the safety and reliability of the circuit board in demanding operating conditions.

Utilizing advanced processing technology such as Resin Plugging and Plated techniques, the Heavy Copper PCB achieves superior conductivity and solderability. These processes help in creating reliable interconnections and ensuring long-term performance of the circuit board.

With a minimum line space of 4mil (0.1mm), the Heavy Copper PCB allows for intricate and compact circuit designs without compromising on electrical performance. This feature makes it ideal for applications that require densely populated circuits and high signal integrity.

Overall, the Heavy Copper based PCB is a robust and high-performance solution for applications that demand superior power handling capabilities and reliable operation. Its combination of thicker copper circuitry, IPC Class 2 testing, Epoxy Resin insulation, advanced processing technology, and precise line spacing make it a versatile choice for a wide range of industrial and commercial electronic designs.

Technical Parameters:

Customization:

Our Product Customization Services for the Thicker Copper circuit board, Heavy Weight Copper Printed Circuit Board, Power PCB include:

Place Of Origin: China

Package: Vacuum Package

Minimum Line Space: 4mil (0.1mm)

Solder Mask Color: Green, Red, Blue, Black, White

Pcba Service: SMD SMT DIP Component Assembly

Processing Technology: Resin Plugging+ Plated

Support and Services:

Our Heavy Copper PCB product comes with comprehensive Product Technical Support and Services to ensure that your project runs smoothly. Our team of experts is available to assist you with any technical queries or issues you may encounter.

Our technical support includes:

• Guidance on PCB design best practices for heavy copper applications
• Assistance with material selection and stackup design
• Recommendations for optimal manufacturing processes
• Troubleshooting and issue resolution
• Customized solutions to meet your specific project requirements

Our dedicated technical support team is committed to providing you with the expertise and assistance you need to successfully implement Heavy Copper PCBs in your applications.
